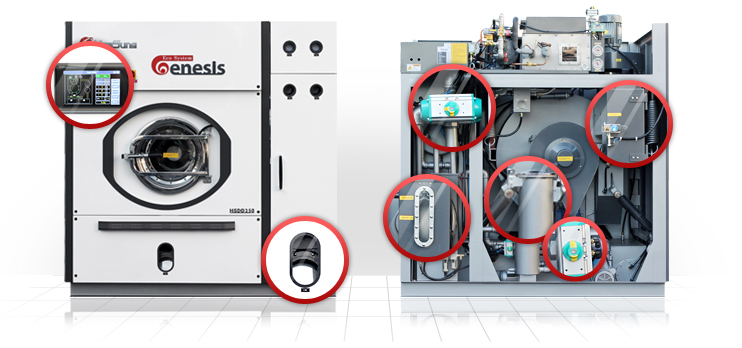

Model: HSDD250
Produce: KOREA
Price CALL

Price Liên hệ Market Price


  • 2x2x2 systeam
    Two tanks, two pumps circuit, and two cartridge filters guarantee perfectly cleaned solvents with no re-deposition and fresh and clean garments every load.
  • Automatic Self-Cleaning Solvent Tanks
    Two solvent tanks are built to self-clean with pre-programmed system during the washing cycle to achieve sludge free solvent tanks.
  • Smart Touch Screen Computer
    Genesis is equipped with the latest "Smart Touch" technology computer system which automatically controls and adjusts washing speed, solvent temperatures, extract speed, inverter speed, and drying temperatures. It features "Maintenance Alert System" which keeps accurate accounts of operation and alerts operator when routine maintenances are required. Other features include daily service reminder, manual overrides, air temperature controls, and soap injection control.
  • Self-Balancing Soft Mount System
    With 25 years of experiences in commercial and industrial laundry system, we have built the most quite and self-balancing soft mount system in the world. Maximum extraction speed of 800rpm, it guarantees the most quite and fastest extraction and drying cycle.
  • Flash Point Temperature Control Drying System
    Genesis is equipped with four thermostats to control the inlet and the outlet air temperatures as well as the refrigeration condenser and solvent temperatures. Temperatures are controlled to keep solvent vapor below the solvent flash point level. This safety system along with nitrogen (N2) injection system will assure the safety while achieving fast drying without overheating.
  • "Cascade" Washing System
    We have designed the basket and the housing to allow solvent to spray into the basket from the top of the drum housing to give cascade effect during wash cycle to achieve the most effective cleaning and stain removal.
  • Multi Stage Water Separator
    two stage water separator only in Genesis assures the fast water/solvent separation and maximum solvent quality. This allows solvent purity and prevents bacteria and odor.
  • Front-Access Gages
    Filters, Compressed Air, and water pressure gages are located in the front for easy reading. All illuminated sight glasses and loading door use LED lights for quick and easy visual inspection.


Specifications kg HSDD250 lbs HSDD250
Load Capacity
Load Capacity kg/lbs 22 lbs 50
Drum & Drum Housing
Diameter mm 970 inch 38
Depth mm 530 inch 21
Drum Wash Speed R.P.M 15~60 R.P.M 15~60
Low Extract Low R.P.M 200~600 Low R.P.M 200~600
High Extract High R.P.M 600~800 High R.P.M 600~800
Drum Quality Stainless steel
Drum Housing Quality steel
Tank Capacity
1 tank Liter 200 gal 55
2 tank Liter 200 gal 55
1 Tank Filter ea/mm 2/470 ea/inch 2/18
2 Tank Filter ea/mm 2/470 ea/inch 2/18
Weight with Solvent
Weight with Solvent kg 3,000 lbs 6,602

Specifications kg HSDD250 lbs HSDD250
Motor & Inverter
Motor kw/ph 5.5/3p hp/hp 7/3p
Fan Motor kw/ph 2.2/3p hp/hp 3/3p
Inverter kw 7.5 hp 10
Pump Motor kw 0.75 hp 1
Refrigeration System
Compressor kw 3.7
Refrigeration   R-404A   R-404A
Power 220v 3ph 60hz 11kw 50amp
Air Pressure kg/cm² 6 psi 87
Steam Pressure kg/cm² 4~6 psi 57~87
Water Pressure kg/cm² 1~ psi 15~
Base Width mm 2,000 inch 79
Base Depth mm 1,600 inch 63
Base Height mm 2,200 inch 87
Weight kg 2,500 lbs 5,500
