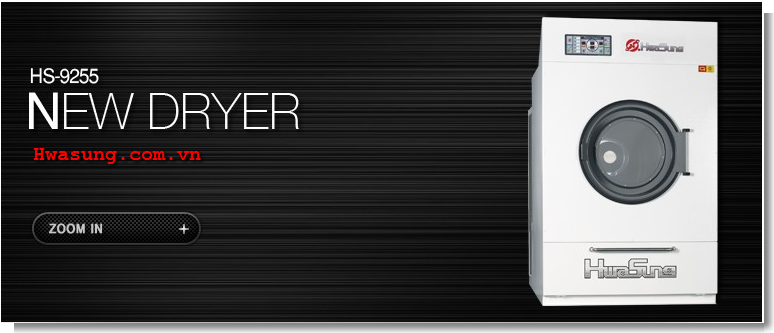

Máy sấy công nghiệp Hwasung 120kg/Mẻ

Giá tham khảo: Liên hệ

Giới thiệu Tính năng

Energy Saving System which was created by HwaSung with the best technology realized reduction of fuel cost over max. 40%. [Option]
Energy saving System maximizes heat which is discharged into air and discharges humid air to dry inside.[Under patent application]
Humid Control System which was developed for the fist time n our country not only saved energy but
also maximized features of fiber structure.

What is a Humidity Control System? [Option]
High functional micro sensor senses the tumidity of fiber and realizes the state of dryness the user wants.
As the time of dryness is controlled automatically according to amount of articles to be dried, unnecessary energy was minimized. [energy-saving effect over 20%]
The excellent thermal efficiency by thermodynamic structure of design and the drying treatment of various article to be dried within a short time by strong air exhaust system maximize the effect of work and reduces upkeep cost by energy saving.
As corrupt humid air being occurred in dryness is exhausted cleanly by high densith filter, it keeps cleanly surrounding environment.
Strong air exhaust fan cleanly removes even minute dust which was contained in cloth and so can't be easily seen and so keep user's health.

Thông số

THÔNG SỐ KỸ THUẬT MÁY SẤY HWASUNG CÔNG SUẤT 120KG/MẺ VẢI KHÔ

HS-9255-120

Nhãn hiệu	HWASUNG
Xuất xứ	Hàn Quốc
Công suất (kg/mẻ vải khô)	120
Đường kính lồng ( mm/inch)	1600/63
Độ sâu lồng (mm/inch)	1030/41
Hơi vào /ra (mm/inch)	25,25/1,1
Công suất bơm ( HP/Kw/Pole)	3/2.2/6
Công suất quạt ( HP/ Kw/ Pole)	3/2.2/4
Kích thước ống xả (mm)	300/11.811
Kích thước máy LWH (mm)	1700x1680x2600
Điện áp (Hơi/Điện) (Kw/Hr) (Volt/Hz/Kw)	220v or 380v/60Hz/6kw,51kw
Trọng lượng (Kg/lbs)	1620/3564
Nhập khẩu nguyên chiếc từ	Hàn Quốc

THÔNG SỐ MÁY SẤY SERI HS-9255

MODEL		단위(unit)	HS-9255
Capacity		Kg/Ibs	30/75	50/110	80/175	100/220	120/265	150/330
Drum	Diameter	mm/inch	970/38.2	1,100/43.3	1,300/51.2	1,600/63	1,600/63	1,800/71
Drum	Depth	mm/inch	800/31.5	1,075/42.3	950/37.4	950/37.4	1,030/41	1,170/46
Steam in,out Motor/pole		mm/inch	15,15/½,½	20,20/¾,¾	20,20/¾,¾	25,25/1,1	25,25/1,1	25,25/1,1
Drum Motor/Pole		HP/Kw/Pole	1/0.75/4	2/1.5/4	2/1.5/4	3/2.2/6	3/2.2/6	3/2.2/6
Fan Motor/Pole		HP/Kw/Pole	1/0.75/4	2/1.5/4	2/1.5/4	3/2.2/4	3/2.2/4	3/2.2/4
Exhaust pipe		mm/inch	200/7,874	250/9,843	300/11,811	300/11,811	300/11,811	300/11,811
Exterior		L.W.H(mm)	1,050×1,320 ×1,760	1,180×1,690 ×1,930	1,400×1,600 ×2,200	1,700×1,600 ×2,500	1,700×1,680 ×2,600	1,880×1,800 ×2,800
Power (Steam Dryer/ Electric Dryer)		Volt/Hz/Kw	220v or 380v 60Hz/1.6Kw, 20Kw	220v or 380v 60Hz/3Kw, 30Kw	220v or 380v 60Hz/3Kw, 39Kw	220v or 380v 60Hz/6Kw, 51Kw	220v or 380v 60Hz/6Kw, 51Kw	220v or 380v 60Hz/6Kw, 59Kw
Weight		Kg/Ibs	590/1,301	950/2,094	1,100/2,425	1,350/2,976	1,620/3,564	2,025/4,455
